Remote Sensors
Remote Sensors SERIES

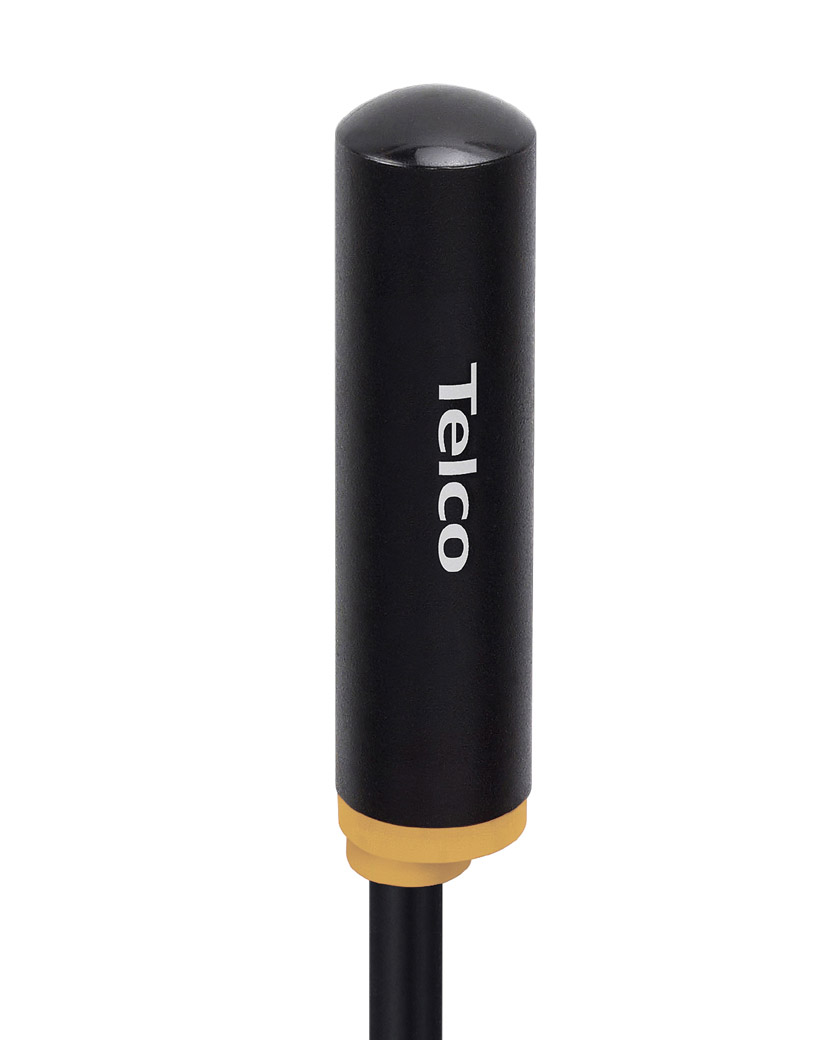

LR 100 AP38 5
Remote Sensors
Remote Photoelectric Systems
Compatible Transmitters
-
LT 100 AP38 5
Function Transmitter Sensing Range Up to 18 m Indicators None Optical Angle +/- 6° (emission) Housing Ø10 Housing Material Plastic Connection 5 m cable
Product Data
| Function | Receiver |
| Sensing Range | Up to 18 m |
| Indicators | None |
| Optical Angle | +/- 7° (opening) |
| Housing | Ø10 |
| Housing Material | Plastic |
| Connection | 5 m cable |
Technical Data
| Photo Transistor | Silicon NPN |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
| Cable | 2 x 0,25 mm² |
| Cable Sleeve | PVC Ø 4,0 mm |
| Min. Cable Bending Radius | 45 mm |
Environmental Data
| Vibration | 10 – 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | – 25 to +65 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 20˚ | > 80 000 lux |
Technical Drawings
-
Wiring Diagram
-
Parallel Displacement
-
Angular Displacement
-
Dimensions
