SM 9000

SpaceMaster™ SERIES

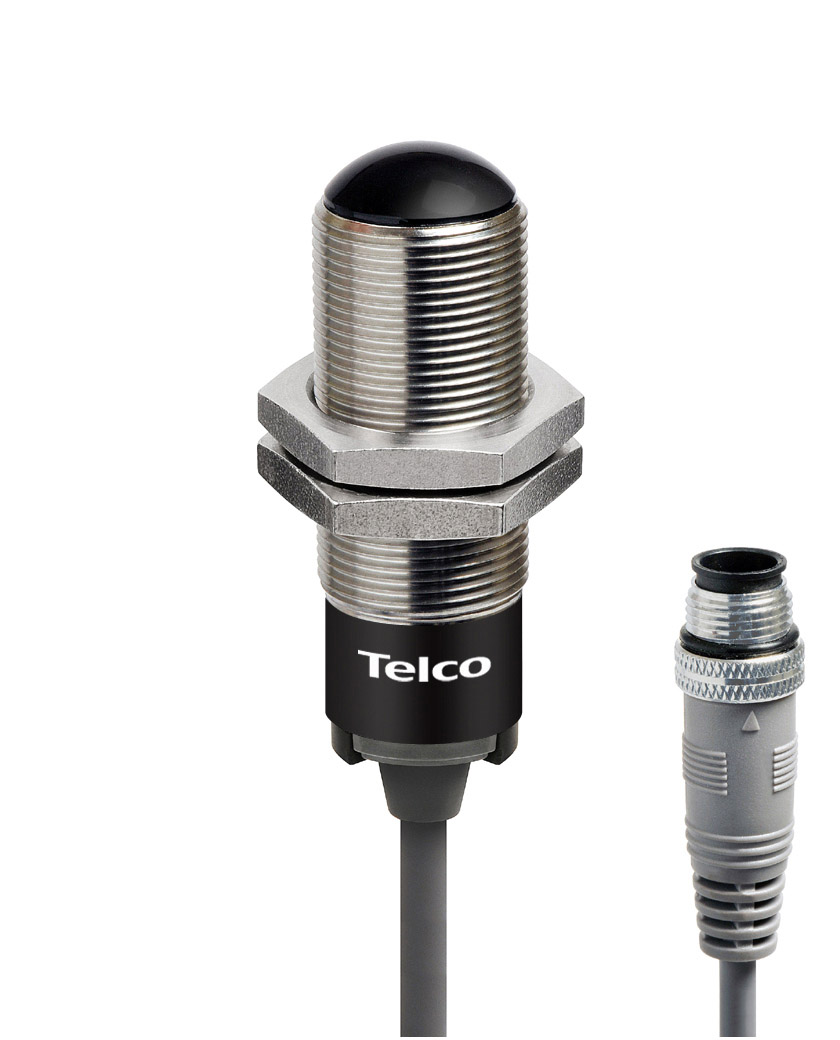

SMT 9070C TS 0.1-J5

Thru Beam

Photoelectric Sensors

SMT 9070C TS 0.1-J5

Thru Beam

  • CE

Compatible Receivers

  • SMR 9070 TS 0.1-J5
    SMR 9070 TS 0.1-J5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 70 m
    Output NPN
    Output Status N.C.
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 0.1 m cable with 5 pin, M12
  • SMR 9170 TS 0.1-J5
    SMR 9170 TS 0.1-J5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 70 m
    Output NPN
    Output Status N.O.
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 0.1 m cable with 5 pin, M12
  • SMR 9270 TS 0.1-J5
    SMR 9270 TS 0.1-J5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 70 m
    Output PNP
    Output Status N.C.
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 0.1 m cable with 5 pin, M12
  • SMR 9370 TS 0.1-J5
    SMR 9370 TS 0.1-J5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 70 m
    Output PNP
    Output Status N.O.
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 0.1 m cable with 5 pin, M12
  • SMR 9471 TS 0.1-J5
    SMR 9471 TS 0.1-J5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 70 m
    Output Solid State Relay
    Output Status N.C./N.O.
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 0.1 m cable with 5 pin, M12
  • SMR 9472 TS 0.1-J5
    SMR 9472 TS 0.1-J5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 70 m
    Output Solid State Relay
    Output Status N.C./N.O.
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 0.1 m cable with 5 pin, M12
  • SMR 9473 TS 0.1-J5
    SMR 9473 TS 0.1-J5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 70 m
    Output Solid State Relay
    Output Status N.C./N.O.
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 0.1 m cable with 5 pin, M12
  • SMR 9474 TS 0.1-J5
    SMR 9474 TS 0.1-J5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 70 m
    Output Solid State Relay
    Output Status N.C./N.O.
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 0.1 m cable with 5 pin, M12

Product Data

Operation Mode Thru Beam
Function Transmitter
Supply Voltage 10 - 30 V dc
Light Source Infrared (880 nm)
Control Feature Adjustable range and test input
Sensing Range 70 m
Housing M18 x 1
Housing Material Stainless Steel
Connection 0.1 m cable with 5 pin, M12

Technical Data

Channel Nº Selectable 4 channels
Supply Voltage 10 - 30 V dc
Voltage Ripple 15 %
Reverse Polarity Protected Yes
Current Consumption 40 mA
Test Input Yes
Control Input Adjustable range
Power On Indicator Green LED
Light Source Infrared (880 nm)
Emission Angle +/- 4°
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Stainless Steel (AISI 316 / 1.4401)
Cable 5 x 0,14 mm²
Cable Sleeve PVC Ø 4,9 mm

Environmental Data

Vibration 10 - 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature -20 to +60 °C
Storage Temperature -40 to +80 °C
Sealing Class IP 69K

Technical Drawings

  • Wiring Diagram Wiring Diagram
  • Connections Connections
  • Parallel Displacement Parallel Displacement
  • Angular Displacement Angular Displacement

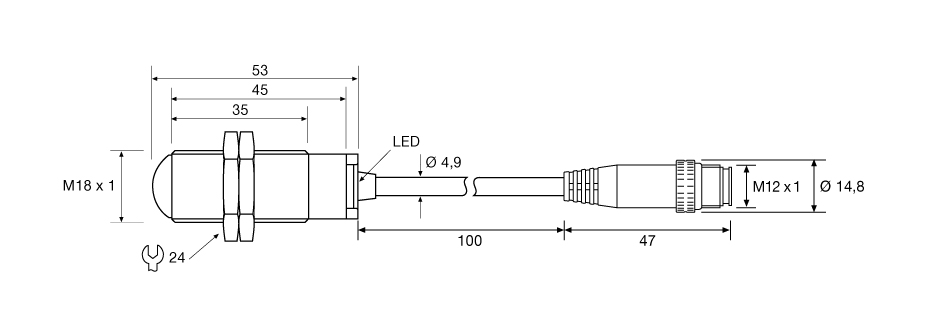

  • Dimensions Dimensions
  • Excess Gain Excess Gain
