SM 6000
SpaceMaster™ SERIES

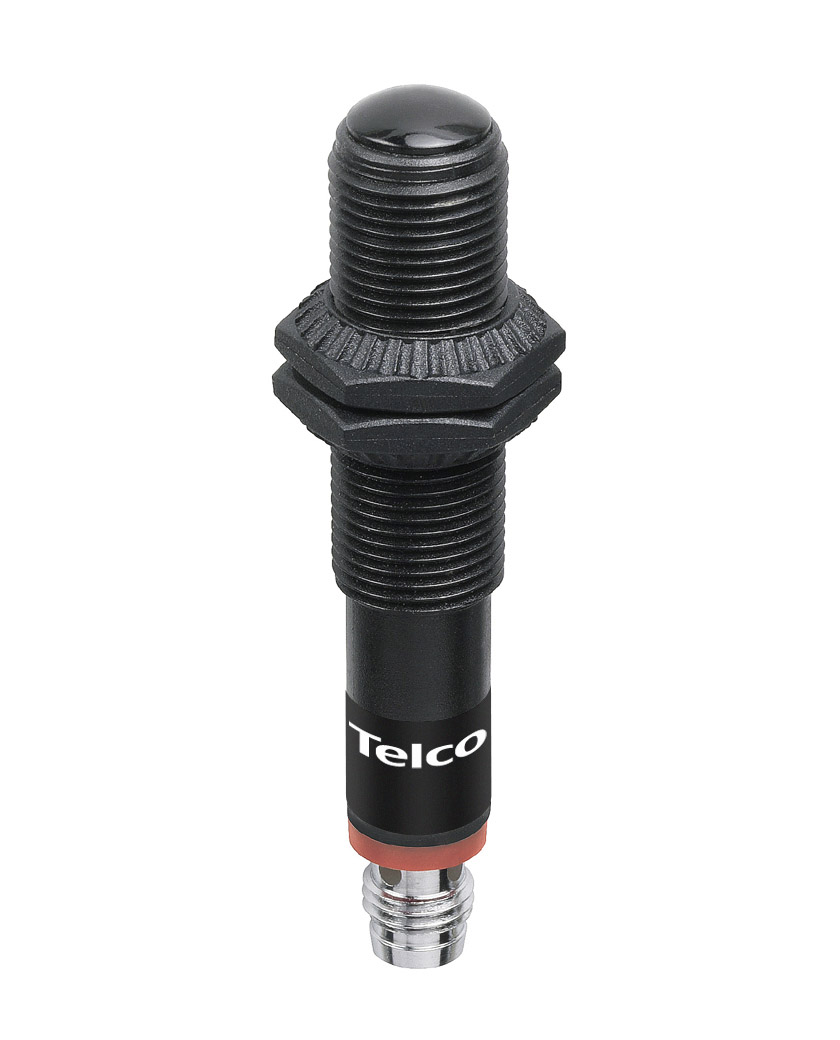

SMT 6000 TP T3
Thru Beam
Photoelectric Sensors

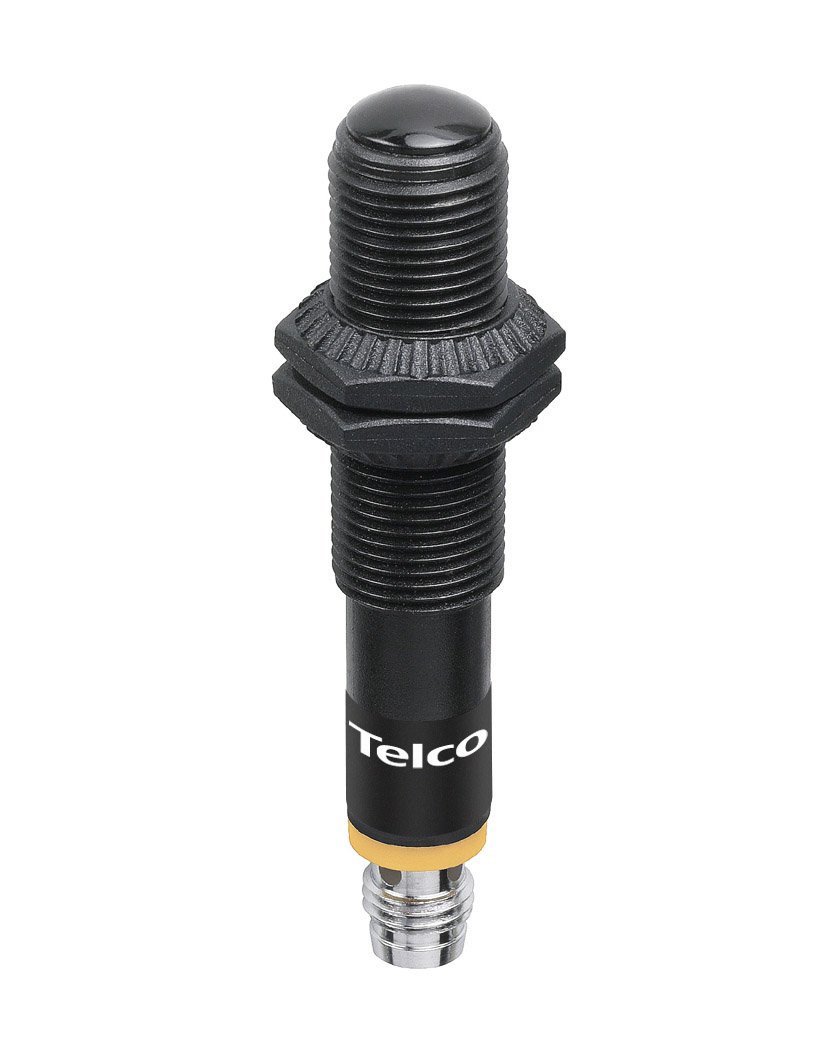

Compatible Receivers
-
SMR 6006 TP T3
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 6 m Output NPN Output Status N.C. Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug -
SMR 6106 TP T3
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 6 m Output NPN Output Status N.O. Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug -
SMR 6206 TP T3
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 6 m Output PNP Output Status N.C. Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug -
SMR 6306 TP T3
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 6 m Output PNP Output Status N.O. Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug -
SMR 6002 TP T3
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 2 m Output NPN Output Status N.C. Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug -
SMR 6102 TP T3
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 2 m Output NPN Output Status N.O. Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug -
SMR 6202 TP T3
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 2 m Output PNP Output Status N.C. Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug -
SMR 6302 TP T3
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 32 V dc Sensing Range 2 m Output PNP Output Status N.O. Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 10 - 32 V dc |
| Light Source | Infrared (880 nm) |
| Control Feature | Adjustable range and test input |
| Sensing Range | 6 m |
| Housing | M12 x 1 |
| Housing Material | Plastic |
| Connection | 3 pin, M8 plug |
Technical Data
| Supply Voltage | 10 - 32 V dc |
| Voltage Ripple | 15 % |
| Reverse Polarity Protected | Yes |
| Current Consumption | Max. 320 mW |
| Test Input | Yes |
| Control Input | Adjustable range |
| Power On Indicator | Green LED |
| Light Source | Infrared (880 nm) |
| Emission Angle | +/- 10° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
| Cable | 3 x 0,14 mm² |
| Cable Sleeve | PVC Ø 4,0 mm |
Environmental Data
| Vibration | 10 - 55 Hz, 0.5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 67 |
Technical Drawings
-
Wiring Diagram
-
Connections
-
Parallel Displacement
-
Angular Displacement
-

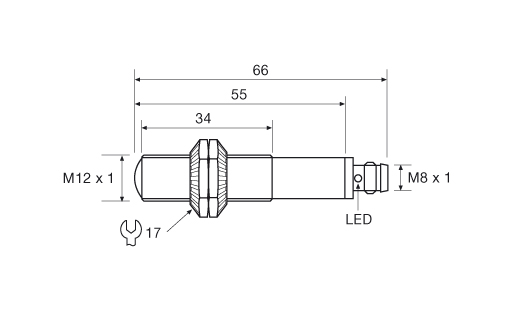

Dimensions
