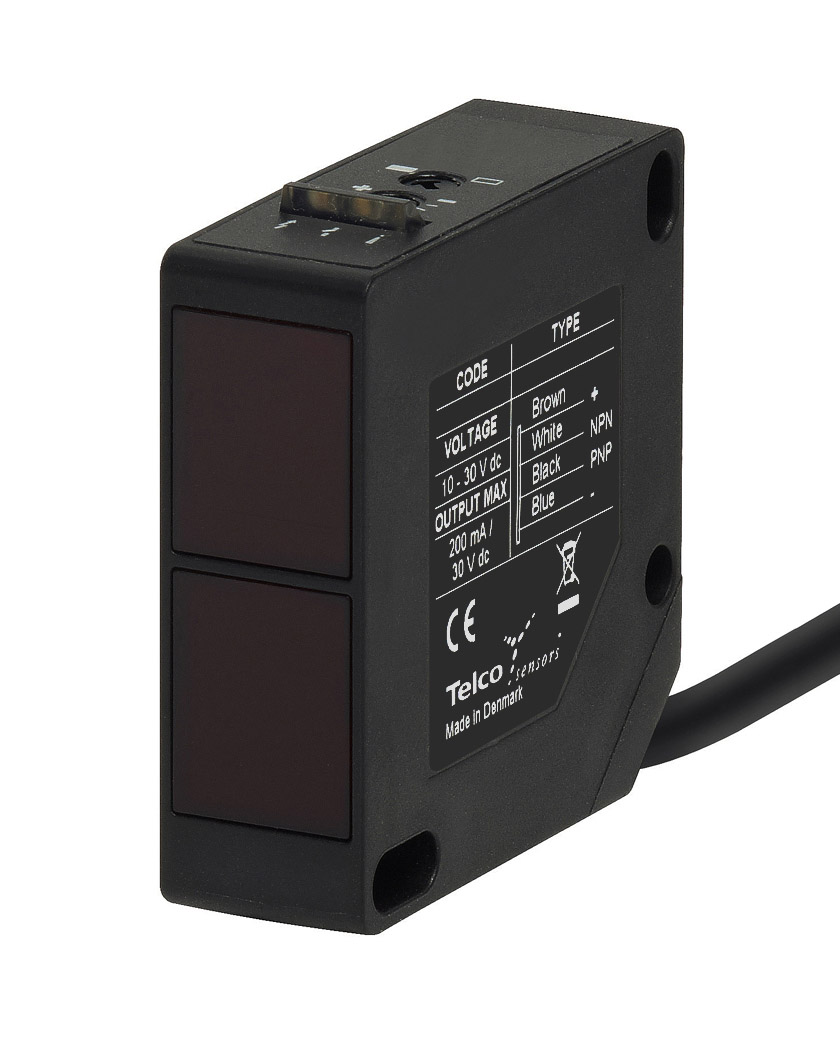

SP 2000

Product Data

Operation Mode	Polarized Retro Reflective
Function	Both
Supply Voltage	10 - 30 V dc
Light Source	Visible Red (670 nm)
Control Feature	Sensitivity pot. and light/dark switch
Sensing Range	0,1 to 10 m
Output	NPN/PNP
Output Status	N.C./N.O.
Housing	17 x 50 x 50
Housing Material	Plastic
Connection	5 m cable

Technical Data

Supply Voltage	10 – 30 V dc
Voltage Ripple	+/– 15 %
Reverse Polarity Protected	Yes
Short Circuit Protected	Yes
Current Consumption	< 65 mA
Max. Operation Frequency	250 Hz
Response Time ton / toff	2 ms / 2 ms
Output, Transistor	200 mA / 30 V dc
Power On Indicator	Green LED
Output Indicator	Yellow LED
Signal Status Indicator	Red LED
Hysteresis	Approx. 10 %
Light Source	Visible Red (670 nm)
Opening Angle	+/– 1,5°
Emission Angle	+/– 2°
Housing Material, Front Lens	Polycarbonate
Housing Material, Sensor Housing	Polycarbonate / ABS
Cable	4 x 0,20 mm2
Cable Sleeve	PVC Ø 4,9 mm

Environmental Data

Vibration	10 – 55 Hz, 0.5 mm
Shock	30 g
Operation Temperature	–20 to +55 °C
Storage Temperature	–40 to +80 °C
Sealing Class	IP 67
Light Immunity 5˚	25 000 lux

Technical Drawings

• Wiring Diagram
• Parallel Displacement

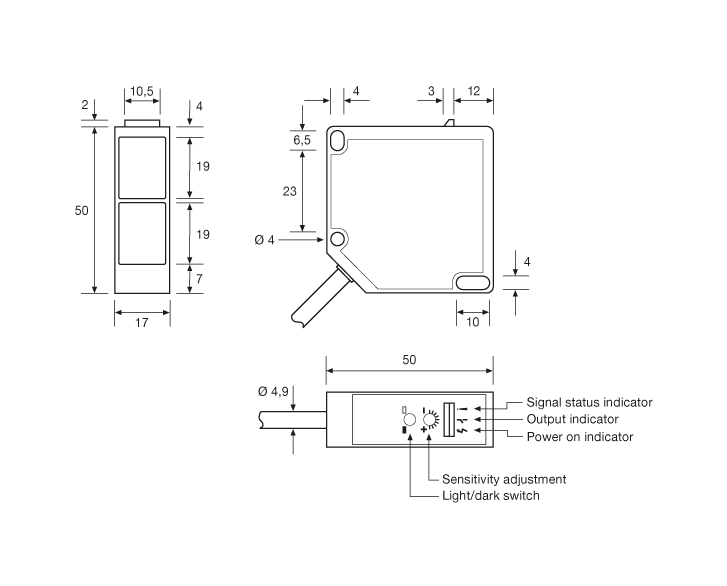

• Dimensions
