SG 17
SpaceGuard™ SERIES
SGT 17-251-053-C1-U-00-0.3-T4-15
Self-Contained Light Curtains
Light Curtains
Compatible Receivers
-
SGR 17-251-053-C1-U-09-0.3-T6-5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Active Height 2340 mm Number of Channels 53 Sensing Range 12 m Output Solid State Relay Output Status N.C. Response 40 ms Housing 12 mm x 14 mm Length 2510 mm Connection 0.3 m cable with 6 pin, M8 plug + 5 m ext. cable Features Dynamic Sequential Blanking Function.
Static Blanking Function. -
SGR 17-251-053-C1-U-OSE0-0.3-T6-5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Active Height 2340 mm Number of Channels 53 Sensing Range 12 m Output 900 Hz 5 V square signal, OSE and NPN Output Status N.C. Response 40 ms Housing 12 mm x 14 mm Length 2510 mm Connection 0.3 m cable with 6 pin, M8 plug + 5 m ext. cable Features Dynamic Sequential Blanking Function.
Static Blanking Function. -
SGR 17-251-053-C1-U-OSE2-0.3-T6-5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Active Height 2340 mm Number of Channels 53 Sensing Range 12 m Output 900 Hz 5 V square signal, OSE and PNP Output Status N.C. Response 40 ms Housing 12 mm x 14 mm Length 2510 mm Connection 0.3 m cable with 6 pin, M8 plug + 5 m ext. cable Features Dynamic Sequential Blanking Function.
Static Blanking Function.
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 10 - 30 V dc |
| Active Height | 2340 mm |
| Number of Channels | 53 |
| Sensing Range | 12 m |
| Housing | 12 mm x 14 mm |
| Length | 2510 mm |
| Connection | 0.3 m cable with 4 pin, M8 plug + 15 m ext. cable |
Technical Data
| Max. Sequencial Blanking Speed | 1,6 m/s |
| Supply Voltage | 10 - 30 V dc |
| Reverse Polarity Protected | Yes |
| Current Consumption | 70 mA |
| Control Input | Yes |
| Power On Indicator | Green LED |
| System Status Indicator | Red LED |
| Light Source | Infrared (880 nm) |
| Profile Dimensions (w x d) | U Profile, 12 mm x 14 mm |
| Housing Material, Profile | Aluminium (black anodised) |
| Cable | 4 x 0,20 mm² |
| Cable Sleeve | PVC Ø 4,5 mm |
| Channel spacing (Ch 1 excluded) | 45 mm |
| Bottom spacing to Ch 1 | 35 mm |
| Spacing between Ch 1 and Ch 2 | 10 mm |
| Housing Material, Front cover (optional) | Polycarbonate |
Environmental Data
| Operation Temperature | – 20 to +55 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 5˚ | > 100 000 lux |
| EU directives | 2011/65/EU (RoHS) - 2014/30/EU (EMC) |
| Standards | IEC 60068-2-6:2007 (vibration). EN 61000-6-2:2019 (EMC emission). EN 61000-6-3:2007 +A1:2011 (EMC immunity). |
Technical Drawings
-
Wiring Diagram
-
Parallel Displacement
-

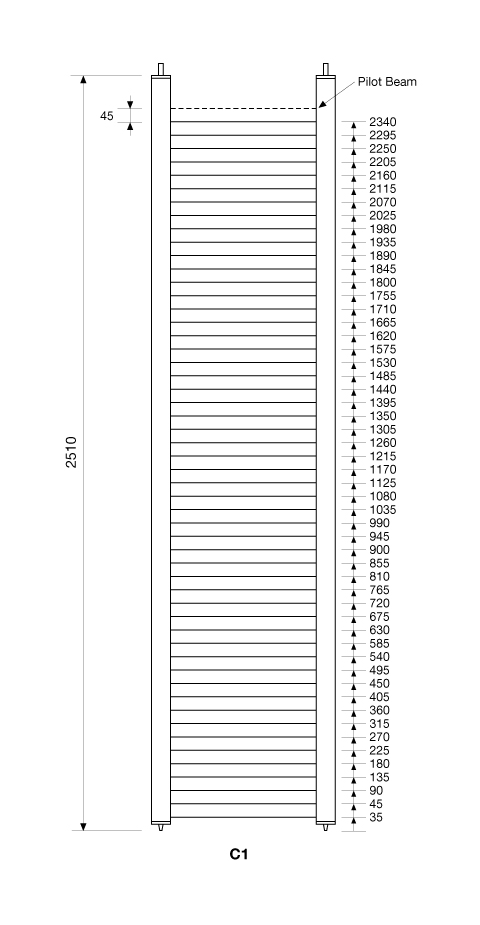

Beam Patterns
-
Dimensions
-
Timing Diagram
-
Connections
