SG 14
SpaceGuard™ SERIES
SGT 14-200-040-A1-C-01-0.5-J5
Self-Contained Light Curtains
Light Curtains
Compatible Receivers
-
SGR 14-200-040-A1-C-08-0.5-J5
Operation Mode Thru Beam Function Receiver Supply Voltage 12 - 36 V dc Active Height 1800 mm Number of Channels 40 Sensing Range 10 m Output Solid State Relay Output Status N.O. Response 37 ms Housing 12 x 30 mm Length 2000 mm Connection 0.5 m cable with 5 pin, M12 plug Features Dynamic Sequential Blanking Function -
SGR 14-200-040-A1-C-09-0.5-J5
Operation Mode Thru Beam Function Receiver Supply Voltage 12 - 36 V dc Active Height 1800 mm Number of Channels 40 Sensing Range 10 m Output Solid State Relay Output Status N.C. Response 37 ms Housing 12 x 30 mm Length 2000 mm Connection 0.5 m cable with 5 pin, M12 plug Features Dynamic Sequential Blanking Function
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 12 - 36 V dc |
| Active Height | 1800 mm |
| Number of Channels | 40 |
| Sensing Range | 10 m |
| Housing | 12 x 30 mm |
| Length | 2000 mm |
| Connection | 0.5 m cable with 5 pin, M12 plug |
Technical Data
| Supply Voltage | 12 – 36 V dc |
| Reverse Polarity Protected | Yes |
| Current Consumption | 70 mA |
| Spacing between bottom & Ch1 | 25 mm |
| Channel Spacing | 46 mm |
| Test Input | Yes |
| Power On Indicator | Green LED |
| Min. / Max. Sequencial Blanking Speed | 1,6 m/s / 0,05 m/s |
| Light Source | Infrared (880 nm) |
| Profile Dimensions (w x d) | Slim Line (C), 12 x 30 mm |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Profile | Aluminium (black anodised) |
| Cable | 3 x 0,20 mm² |
| Cable Sleeve | PVC Ø 4,9 mm |
Environmental Data
| Operation Temperature | –20 to +65 °C |
| Storage Temperature | –40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 5˚ | > 100 000 lux |
Technical Drawings
-

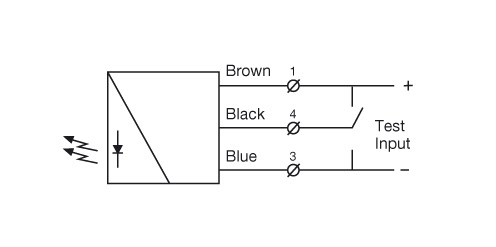

Wiring Diagram
-

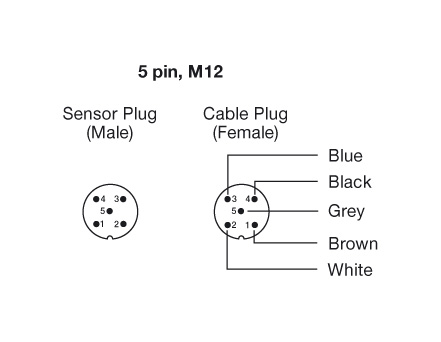

Connections
-

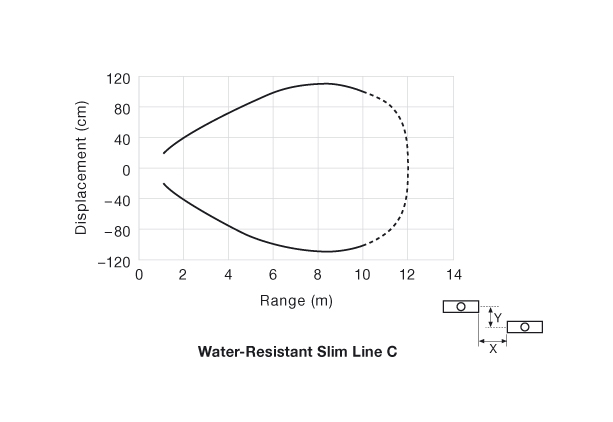

Parallel Displacement
-

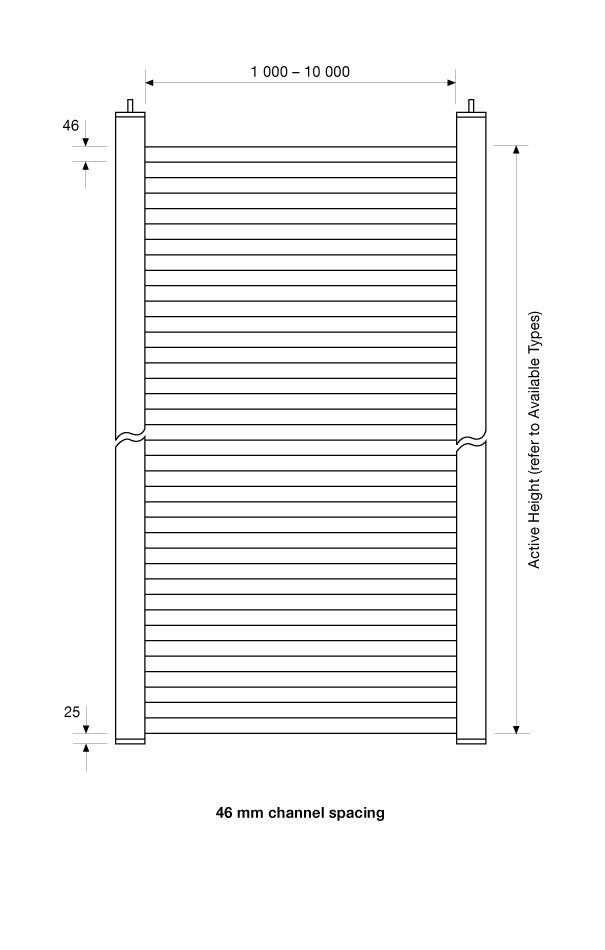

Beam Patterns
-
Dimensions
